• Sizes available (Nominal) :2”/DN50, 2½”/DN65, 3”/DN80, 4”/DN100, 5”/DN125, 6”/DN150, 8”/DN200, 10”/DN250 and 12”/DN300
• Working pressure : 21 bar (300 psi)
• Seat Type: Resilient wedge
• Finish : Fusion bonded expoxy coating internal and external
• Connections : Grooved metric or AWWA C606 standard
• Specification : Design and dimensions conform to AWWA C515
• Features : Pre-notched, stainless steel stem for easy
• Note : Size 5” is only UL listed

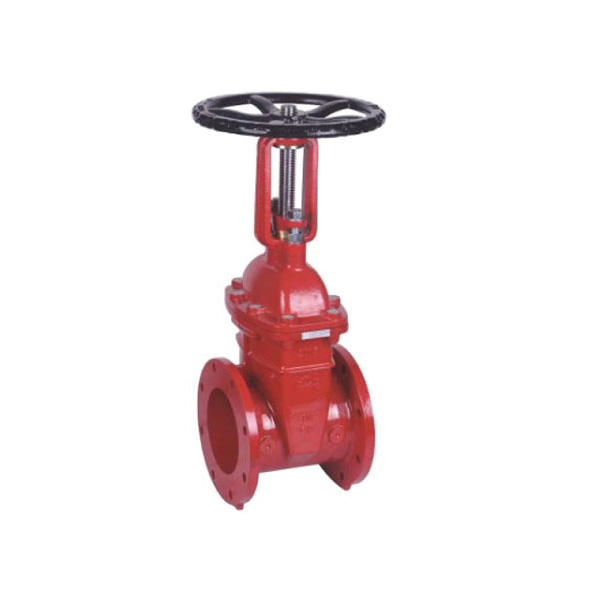

Gate valves are manually operated multi-turn valves and are opened by a handwheel or other operating device, generally in a counter clockwise direction and then closed clockwise.

• Sizes available (Nominal): DN65/21 /2”, DN80/3”, DN100/4”, DN150/6” and DN200/8”.
• Pressure data :
• Working pressure : 20.7 bar (300 psi)
• Max. test pressure : 41.3 bar (600 psi)
• Finish :Fusion bonded Nylon 11 coating
• Connections :Grooved joint dimensions are made in accordance with ANSI/AWWA C606 (Ductile iron pipe and steel pipe) and metric pipe specifications.
• Supervisory Switches :The gearbox is fitted with one internal supervisory position switch and one internal auxiliary switch.

The HPG series butterfly valves come complete with one internal supervisory position switch and one internal auxiliary switch. The supervisory/auxiliary switches operate by a cam connected to the valve stem and are designed to notify in the case of valve closure. Please refer to the relevant installation standard and Authority Having Jurisdiction. The switches will change position and close within two (2) full turns of the hand wheel from the fully open position.

• Sizes available (Nominal) :2”/DN50, 2½”/DN65, 3”/DN80, 4”/DN100, 5”/DN125, 6”/DN150, 8”/DN200, 10”/DN250 and 12”/DN300
• Working pressure  :21 bar (300 psi)
• Seat type : Resilient wedge
• Finish : Fusion bonded epoxy coated internal and external
• Connections : Flange diameter and thickness according to ANSI B16.1 Class 125, EN1092-2 PN10 or EN1092-2 PN16
• Specifications : Design and dimensions conform to AWWA C515
• Operation :For use with IPV or IPW indicator posts
• Remark :No post flange supplied with 2”, 2½” & 3”, and size 2” is FM approved only and size 5” is UL listed only

Gate valves are manually operated multi-turn valves and are opened by a handwheel or other operating device, generally in a counter clockwise direction and then closed clockwise.

• Sizes available (Nominal) :2”/DN50, 2½”/DN65, 3”/DN80, 4”/DN100, 5”/DN125, 6”/DN150, 8”/DN200, 10”/DN250 and 12”/DN300
• Working pressure  :21 bar (300 psi)
• Seat type : Resilient wedge
• Finish : Fusion bonded epoxy coated internal and external
• Connections : Grooved metric or AWWA C606 standard
• Specifications : Design and dimensions conform to AWWA C515
• Operation :For use with IPV or IPW indicator posts
• Remark :No post flange supplied with 2”, 2½” & 3”, and size 2” is FM approved only and size 5” is UL listed only

Gate valves are manually operated multi-turn valves and are opened by a handwheel or other operating device, generally in a counter clockwise direction and then closed clockwise.
