SecuriFire 1000
FeaturesOperation/DescriptionsSpecifications
- Lightning-fast detection of incipient fires
- Up to 250 detectors and other elements per system
- Addressable loop up to 3,500 m in length
- Fully redundant software design for permanent availability
- Simple planning, programming and operation
- Backward and forward compatible
- Cost-efficient solutions
- Complies with the highest safety standards
- Interface for connection to the fire services
- Compact design

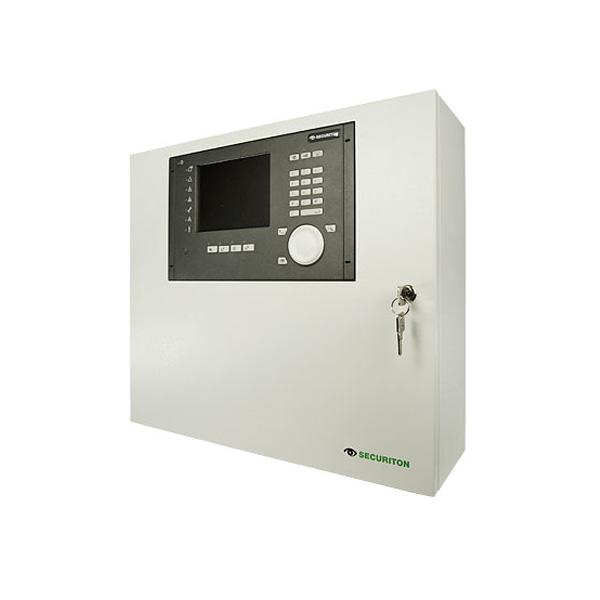

The compact SecuriFire 1000 fire alarm control panel controls the system components and evaluates the detector data. The detectors, the wide range of different input/output modules and the special detectors communicate directly with the control panel via the SecuriLineeXtended.
| Technical data SCP-10XX | |
|---|---|
| 230 VAC +15%/-20% | Mains voltage |
| 47-63 Hz | Frequency |
| 160W | Power consumption max. |
| 4A | Output current |
| 12V/17Ah | Batteries (largest): 2 pieces in series |
| IP 30 | Protection class |
| -5°/+50°C | Ambient temperature |
| 26.3 VDC (+50°C) - 28.3 VDC (0°C) | Output voltage |
| 74mA | Quiescent current (w/o oper. panel, w/o printer) |
| 5-95% | Rel. air humidity: without condensation |
| 400×445×150 mm | Dimensions (H × W × D) |
| 8 kg | Weight of basic version: (without batteries) |
| Technical data SecuriLineeXtended | |
|---|---|
| 250max. | Number of addresses |
| 3500m | Ring circuit length |
| Automatic | Address allocation |
| 531 | Backwards compatibility to series |
| > 300 mA | Short-circuit detection |
| 24 VDC | Rated operating voltage |
| Loop | Type of laying |
| < 100sec. | Starting/repairing time |
| Product summary | |
|---|---|
| B6-SCP1020 | SecuriFire 1000 basic version, with built-in operating panel |
| B6-SCP1030 | SecuriFire 1000 basic version, with built-in operating panel and printer |
