• Combined smoke and heat detector in compliance with EN 54-5/7/29
• Integrated sounder according to EN 54-3, volume up to 92 dB(A)
• Optimal sensitivity thanks to Cubus levelling
• High false-alarm security thanks to temperature-supported smoke alarm evaluation
• Integrated voice evacuation
• Uninterrupted audible alarm transmission

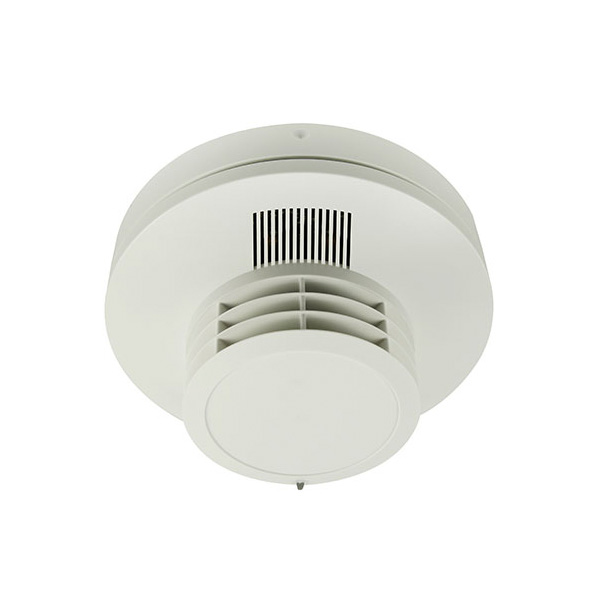

The MCD 573X-SP is a combined fire detector: the temperature-supported smoke sensor provides early detection of smouldering, glowing and open fires with smoke development. Smoke sensitivity adapts to the prevailing ambient conditions in the area and automatically regulates smoke sensitivity (Cubus levelling). The heat sensor also detects fires with no smoke development when fires break out rapidly with high temperatures. The smoke detection system provides two programmable pre-signal levels. Heat detection can be set to classes A1, A2 and B, each combinable with the index S or R. Smoke and heat can be evaluated either independently or as a combined algorithm (smoke and temperature). Optimum operability is guaranteed through self-monitoring, the two-stage contamination display, and alarm threshold tracking.

• Combined smoke and temperature detector according to EN 54-5/7/29
• Integrated acoustics according to EN 54-3, volume up to 92 dB(A)
• Optimal sensitivity thanks to Cubus levelling
• High false-alarm security thanks to temperature-supported smoke-alarm evaluation

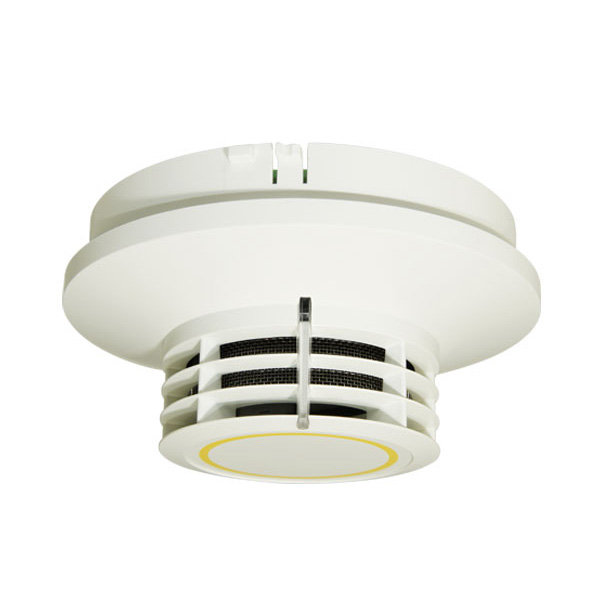

The MCD 573X-S is a combined fire detector: the temperature-supported smoke sensor provides early detection of smouldering, glowing and open fires with smoke development. Smoke sensitivity adapts to the prevailing ambient conditions in the area and automatically regulates itself (Cubus levelling). The heat sensor also detects fires with no smoke development when fires break out rapidly with high temperatures. The smoke detection system provides two programmable pre-signal levels. Heat detection can be set to classes A1, A2 and B, each combinable with the index S or R. The two criteria smoke and temperature can be evaluated either independently or as a combined algorithm for smoke and temperature. Optimum operability is guaranteed through self-monitoring, the two-stage contamination display, and alarm threshold tracking.

• Combined smoke, heat and carbon monoxide (CO) detector according EN 54-5/7/26/29/30
• Optimal sensitivity
• False-alarm security through temperature supported smoke alarm evaluation (Cubus levelling) and temperature and carbon monoxide-supported smoke alarm evaluation (Cubus+ levelling)
• Technical CO alarm according EN 50291-1
• Adjustable technical CO pre-signal 20…320 ppm

The CCD 573X is a combined fire detector: The temperature- and CO-supported smoke sensor provides early detection of smouldering, glowing and open fires with smoke development. The smoke sensitivity adapts to the prevailing ambient conditions in the area. The detector automatically regulates the smoke sensitivity based on the temperature and CO content (Cubus and Cubus+ levelling). The temperature sensor even detects fire with no smoke development when fires spread rapidly at high temperatures. The smoke detection system offers 2 programmable pre-signal stages. The temperature detection can be set to class A1, A2 or B, each combinable with the index S or R. The CO cell detects the rise in carbon monoxide gas released during fires. The three criteria of smoke, heat and CO can be evaluated either independently or as combined algorithms for smoke and temperature or CO and temperature. Self-monitoring, two-stage contamination display and alarm threshold monitoring guarantee optimal operability.
