Control M 2.2 FIRE H

General Description

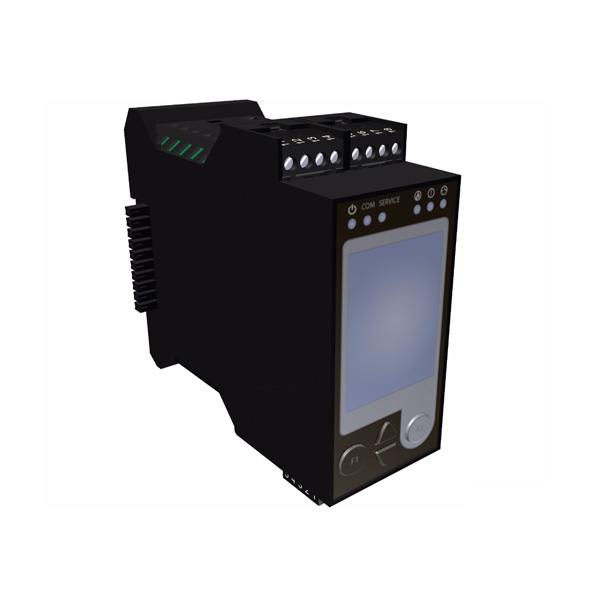

The Control M 2.2 is a Control Panel with a 2.2" graphical colour display used to manage and supervise a system.

Control M 2.2 is equipped with communication buses for connecting to the system, and it provides the following features:

  • A backlit 2.2" graphical colour display
  • Alarm buzzer
  • LED status indicators
  • Backbone Bus Interface
  • Ethernet connection
  • RS-422/RS-485 interface
  • USB interface
  • Two configurable powered I/Os
  • Two programmable relay outputs

Refer to the User Guide for more information on operating Control M 2.2.

For details on assembling a system and definitions of common system terms, refer to the Installation Manual.
